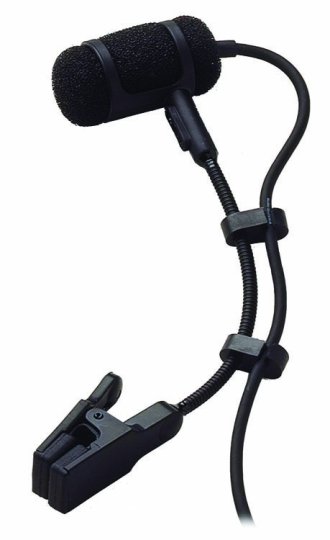

High-intensity cardioid mini condenser instrument microphone with XLRM output. Can be clipped to brass, drum, cymbals or reeds for high clarity. 9-52v DC phantom power.
Features
High-Intensity Cardioid Mini Condenser Instrument Microphone with XLRM Output. Can Be Clipped To Brass, Drum, Cymbals Or Reeds For High Clarity 9-52v DC Phantom Power Ideal for woodwinds, brass, strings, piano, snare and toms Handles high-intensity sound without distortion
Perfect for active stage performances UniMount® clip permits accurate positioning while protecting element 5.9' (1.8 m) cable permanently attached to mic, screw terminals at power module
PRO 35x Specifications
Element
Dynamic Range (Typical)
Condenser
115 dB, 1 kHz at Max. SPL
Polar Pattern
Phantom Power Requirements
Cardioid
9 - 52V, 2 mA typical
Frequency Response
Switch
50 - 17,000 Hz
Flat/low-roll-off
Open Circuit Sensitivity
Low Frequency Roll-off
-54 dB (1.9 mV) re 1V at 1 Pa
150 Hz, 6 dB per octave
Impedance
Weight
200 ohms
0.25 oz (7 g)
Maximum Input Sound Level
Power Module
149 dB SPL, 1 kHz at 1% T.H.D.
In-line
Signal to Noise Ratio
Output Connector
60 dB, 1 kHz at 1 Pa
XLRM-type (power module)
Accessories Furnished:
AT8418 UniMount® instrument mount; AT8533x power module
Details<1>High-Intensity Cardioid Mini Condenser Instrument Microphone with XLRM Output. <>Can Be Clipped To Brass, Drum, Cymbals Or Reeds For High Clarity <>9-52v DC Phantom Power <1>Ideal for woodwinds, brass, strings, piano, snare and toms <>Handles high-intensity sound without distortion <>Perfect for active stage performances <>UniMount® clip permits accurate positioning while protecting element <>5.9' (1.8 m) cable permanently attached to mic, screw terminals at power module
PRO 35x Specifications
Element
Dynamic Range (Typical)
Condenser
115 dB, 1 kHz at Max. SPL
Polar Pattern
Phantom Power Requirements
Cardioid
9 - 52V, 2 mA typical
Frequency Response
Switch
50 - 17,000 Hz
Flat/low-roll-off
Open Circuit Sensitivity
Low Frequency Roll-off
-54 dB (1.9 mV) re 1V at 1 Pa
150 Hz, 6 dB per octave
Impedance
Weight
200 ohms
0.25 oz (7 g)
Maximum Input Sound Level
Power Module
149 dB SPL, 1 kHz at 1% T.H.D.
In-line
Signal to Noise Ratio
Output Connector
60 dB, 1 kHz at 1 Pa
XLRM-type (power module)
Accessories Furnished:
AT8418 UniMount® instrument mount; AT8533x power module
