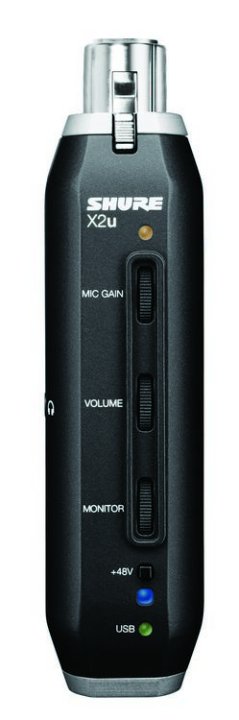

XLR-to-USB Signal Adapter

Use your favorite microphones to digitally record wherever and whenever your computer takes you with the new X2u XLR-USB Signal Adapter.

Perfect for multi-track recording, the X2u features built-in headphone monitoring with zero latency, and easy controls to balance microphone and playback audio, just plug and play for better-than-CD quality sound.

Features

• Connect • •Plug and Play USB Connectivity allows the convenience of digital recording, anywhere your computer can go (compatible with Windows 7, Vista, XP, 2000, and Mac OS X 10.1 or later) • •Provides +48V Phantom power • •USB cable (3m / 9.8ft) included for immediate use •  • Record • •Monitor Mix Control for blending microphone and playback audio

• •Headphone jack with volume control for monitoring • •Integrated pre-amp with Microphone Gain Control allows control of input signal strength •  • Playback • •Zero Latency Monitoring for real-time playback and multi-tracking without disorientation • •16 bit, up to 48 kHz sample rate for better-than-CD quality audio

Details

Frequency Response 20 to 20,000 Hz +/- 1 dB Power Requirements USB-powered, 500 mA, maximum Digital Noise Floor (20 Hz to 20 kHz, A-weighted) Minimum MIC GAIN setting: −81 dB FS Maximum MIC GAIN setting: −78 dB FS Sampling Rate up to 48 kHz Bit Depth 16 bit Peak Signal Indicator (Tri-color) OFF: −30 dB FS Green: −30 to −12 dB FS Yellow: −12 to 0 dB FS Red: >0 (digital converter clipped) Adjustable Gain Range 40 dB Headphone Output 3.5 mm (1/8 inch)
