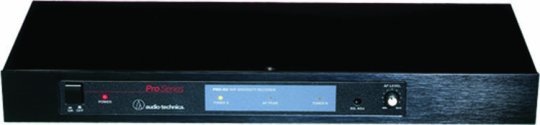

True Diversity Wireless Receiver

Individual True Diversity Wireless Receiver.

Features

• True diversity reception and full FM deviation • Choice of 20 VHF frequencies • InvisibleLink® circuitry delivers optimum sound quality • Ground-lift switch and adjustable squelch control

• Balanced and unbalanced audio output jacks • Receiver mounts in a single 19" rack space • Dual-power battery-save switches on transmitters ATW-R11 Receiver   Receiving System Dual independent receivers, automatic-switching diversity reception   Image Rejection >=60 dB   Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz   Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)   Sensitivity 10 µV for 60 dB S/N (IEC-weighted)   Audio Output Unbalanced: 350 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load) Balanced: 220 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)   Output Connectors Unbalanced: 1/4" phone jack Balanced: XLRM-type   Power Supply 12-18V DC, 350 mA, with provided AC adapter   Dimensions 16.93" (430.0 mm) W x 1.92" (48.8 mm) H x 7.28" (185.0 mm) D   Net Weight 5.5 lbs (2.5 kg)   Accessories Included Two whip antennas, rack-mount adapters, Details <1>True diversity reception and full FM deviation <>Choice of 20 VHF frequencies <>InvisibleLink® circuitry delivers optimum sound quality <>Ground-lift switch and adjustable squelch control <>Balanced and unbalanced audio output jacks <>Receiver mounts in a single 19" rack space <>Dual-power battery-save switches on transmitters ATW-R11 Receiver   Receiving System Dual independent receivers, automatic-switching diversity reception   Image Rejection >=60 dB   Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz   Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)   Sensitivity 10 µV for 60 dB S/N (IEC-weighted)   Audio Output Unbalanced: 350 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load) Balanced: 220 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)   Output Connectors Unbalanced: 1/4" phone jack Balanced: XLRM-type   Power Supply 12-18V DC, 350 mA, with provided AC adapter   Dimensions 16.93" (430.0 mm) W x 1.92" (48.8 mm) H x 7.28" (185.0 mm) D   Net Weight 5.5 lbs (2.5 kg)   Accessories Included Two whip antennas, rack-mount adapters, AD1205A AC adapter
