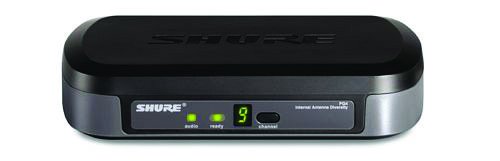

Diversity Receiver

Roll over or click to zoom in

SHURE

See more from SHURE

Model: PG4

 Out of Stock

List $206.00
Price $186.39
(Save: $19.61)
Single-channel receiver for use with Shure Performance Gear Wireless systems.

Available with Handheld, Headworn, Guitar/Bass, and Lavalier system packages from Performance Gear Wireless.

Features

• Up to 10 selectable channels
• Up to 8 compatible systems* 		 • 1/4" and XLR output
• Micro-processor-controlled internal antenna diversity

Details

Output Impedance XLR connector: 200 Ohms 1/4 inch connector: 1 kilohm Audio Output Level Ref. +/– 33 kHz deviation with 1 kHz tone XLR connector (into 100 kilohm load): –19 dBV, typical 1/4 inch connector (into 100 kilohm load): –5 dBV, typical Sensitivity –105 dBm for 12 dB SINAD, typical Image Rejection >50 dB, typical Dimensions PG4 188 mm L x 103 mm W x 40 mm D (7.4 in. x 4.0 in. x 1.5 in.) Weight PG4 241 grams (8.5 oz) Housing Molded ABS Power Requirements supplied by external power supply PG4: 12–18 Vdc at 160 mA
