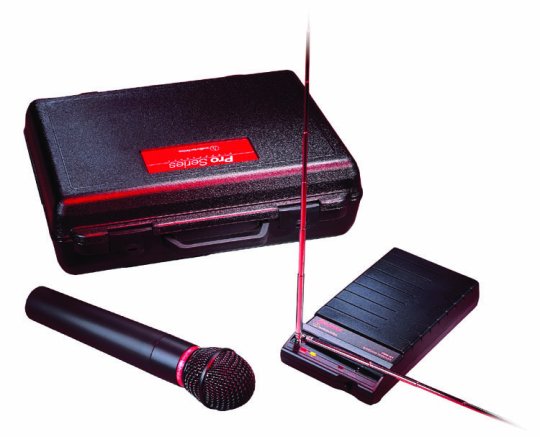

Wireless Handheld Microphone

Provides freedom of movement for on-stage singing and presentations. PRO-R1 Receiver and ATW T28 microphone/transmitter.

Features

• ATW-R200 receiver • ATW-T201 transmitter • Hi-Z instrument input cable Professional systems deliver "wired" sound with the freedom of wireless • Easy to set-up and easy to use • Advanced antenna system extends operating range

• Adjustable squelch control on receiver helps eliminate interference • Dual-power battery-save switches on transmitters • UniPak™ transmitter features detachable microphones/guitar cable with professional locking connector • Handheld transmitter features Hi-ENERGY® dynamic microphone element for excellent articulation • Durable carrying case included with each system provides protection, convenience and portability Overall System   Operating Frequencies VHF band, 169.505, 170.245, 171.905 MHz Frequency Stability ±0.005% Modulation Mode FM Maximum Deviation ±15 kHz Operating Range 200' minimum Operating Temperature Range 40° F (4° C) to 110° F (43° C) Frequency Response 80 Hz to 13 kHz ATW-R200 Receiver   Receiving System Non-diversity, single-channel dual antenna system Image Rejection 50 dB minimum Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz) Sensitivity 20 dBµV for 60 dB S/N (IEC-weighted) Audio Output 350 mV (at 1 kHz, ±10 kHz deviation, 100 k ohm load) Output Connector 1/4" phone jack Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply Dimensions 8.27" (210.0 mm) W x 1.72" (43.5 mm) H x 4.73" (120.0 mm) D Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams) Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset ATW-T201 UniPak™ Transmitter   RF Power Output 10 mW (High) and 2 mW (Low) typical Spurious Emissions Under federal regulations Dynamic Range >=90 dB, A-weighted Input Connections High impedance, low impedance, bias Battery (not included) 9V (NEDA type 1604) alkaline Current Consumption 30 mA typical Battery Life Approximately 15 hours (High) and 20 hours (Low) Dimensions 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D Net Weight (without battery) 2.8 oz (78 g Details <1>ATW-R200 receiver <>ATW-T201 transmitter <>Hi-Z instrument input cable <1>Professional systems deliver "wired" sound with the freedom of wireless<>Easy to set-up and easy to use<>Advanced antenna system extends operating range<>Adjustable squelch control on receiver helps eliminate interference<>Dual-power battery-save switches on transmitters<>UniPak™ transmitter features detachable microphones/guitar cable with professional locking connector<>Handheld transmitter features Hi-ENERGY® dynamic microphone element for excellent articulation<>Durable carrying case included with each system provides protection, convenience and portability Overall System   Operating Frequencies VHF band, 169.505, 170.245, 171.905 MHz Frequency Stability ±0.005% Modulation Mode FM Maximum Deviation ±15 kHz Operating Range 200' minimum Operating Temperature Range 40° F (4° C) to 110° F (43° C) Frequency Response 80 Hz to 13 kHz ATW-R200 Receiver   Receiving System Non-diversity, single-channel dual antenna system Image Rejection 50 dB minimum Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz) Sensitivity 20 dBµV for 60 dB S/N (IEC-weighted) Audio Output 350 mV (at 1 kHz, ±10 kHz deviation, 100 k ohm load) Output Connector 1/4" phone jack Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply Dimensions 8.27" (210.0 mm) W x 1.72" (43.5 mm) H x 4.73" (120.0 mm) D Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams) Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset ATW-T201 UniPak™ Transmitter   RF Power Output 10 mW (High) and 2 mW (Low) typical Spurious Emissions Under federal regulations Dynamic Range >=90 dB, A-weighted Input Connections High impedance, low impedance, bias Battery (not included) 9V (NEDA type 1604) alkaline Current Consumption 30 mA typical Battery Life Approximately 15 hours (High) and 20 hours (Low) Dimensions 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D Net Weight (without battery) 2.8 oz (78 grams)
