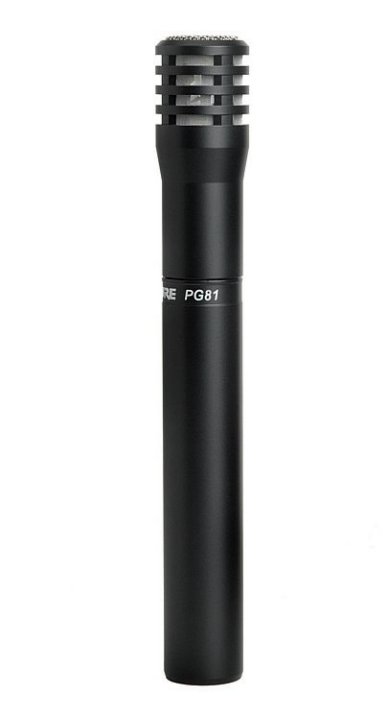

PG81 Acoustic Instrument Microphone with On/Off Switch

Roll over or click to zoom in

SHURE

See more from SHURE

Model: PG81-LC

 Out of Stock

List $155.00
Price $125.89
(Save: $29.11)
A sensitive, flat response condenser microphone ideal for acoustic instruments.

Features

• Flat frequency response is wide and uniform. Consistent sensitivity through frequency range.
• Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
• Condenser cartridge has a lightweight, sensitive diaphragm. Precisely and smoothly captures sound nuances.
• Powered by AA battery or phantom power supply. 		 • Internal shock mount for reduced handling noise.
• Durable metal construction.
• On/off switch for onstage control.

Details

Includes Mic Clip, 5/8" to 3/8" Thread Adapter, Storage Bag Microphone Type Condenser (electret bias) Polar Pattern Cardioid (unidirectional), symmetrical about axis Frequency Response 40 to 18,000 Hz Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector Output Impedance (at 1000 Hz) 600 ohms Sensitivity (at 1000 Hz) -48 dBV/Pa, (4.0 mV), 1 Pascal = 94 dB SPL Electromagnetic Hum Sensitivity -7 dB equivalent SPL in a 1 millioersted field (60 Hz) Switch Built-in On/Off switch Recommended Input Load Impedance 800 ohms minimum Output Clipping Level (1 kHz, 1 % THD) 2000 ohm load -13 dBV (0.22 V) (phantom) -17 dBV (0.14 V) (battery) Maximum SPL 2000 ohm load: 131 dB (phantom), 127 dB (battery) Self-Noise (Equivalent SPL) 20 dB typical, A-weighted Dynamic Range (maximum SPL, 2k ohm load, to A-weighted noise level) 111 dB (phantom); 107 dB (battery) Signal-to-Noise Ratio 68 dB (IEC 651)* at 94 dB SPL PowerPhantom Power Supply Voltage: 11 to 52 Vdc Current Drain: 2.0 mA max at 52 Vdc Maximum External Voltage Applied to Pins 2 and 3 with respect to Pin 1: +52 Vdc Reverse polarity protected to: 100 Vdc Battery Power Recommended: 1.5 V alkaline AA size (NEDA 15A) Life: up to 10,000 hours Connector Three pin professional audio connector (male XLR type) Case Steel and brass construction with black painted finish Environmental Conditions This microphone operates over a temperature range of -29 to 57 degrees Celsius (-20 to 135 degrees Fahrenheit), and at a relative humidity of 0 to 95%. Weight Net: 250 g (8.8 oz) less battery Packaged: 880 g (1 lb 15 oz)
