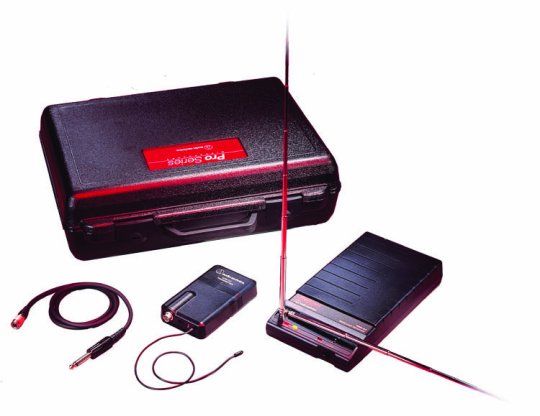

Delivers “wired” guitar sound with the freedom of wireless. PRO-R1 Receiver and ATW T27 UniPak transmitter with AT-GCW input cable.
Features
• PRO-R1 receiver • ATW-T27 transmitter • AT-GCW guitar input cable Professional systems deliver "wired" sound with the freedom of wireless • Easy to set-up and easy to use • Advanced antenna system extends operating range
• Adjustable squelch control on receiver helps eliminate interference • Dual-power battery-save switches on transmitters • UniPak™ transmitter features detachable microphones/guitar cable with professional locking connector • Handheld transmitter features Hi-ENERGY® dynamic microphone element for excellent articulation • Durable carrying case included with each system provides protection, convenience and portability
Overall System
Operating Frequency
VHF band, 169 MHz to 207 MHz
Frequency Stability
±0.005%
Modulation Mode
FM
Maximum Deviation
±15 kHz
Operating Range
200' minimum
Operating Temperature Range
40° F (4° C) to 110° F (43° C)
Frequency Response
100 Hz to 15 kHz
PRO-R1 Receiver
Receiving System
Non-diversity single-channel dual antenna system
Image Rejection
50 dB minimum
Signal-to-noise Ratio
87 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
4.33" (110.0 mm) W x 1.38" (35.1 mm) H x 8.27" (210.1 mm) D
Net Weight
10.2 oz (289 grams)
Accessory Included
AD1203A AC adapter
ATW-T27 UniPak™ Transmitter
RF Power Output
50 mW Max
Spurious Emissions
Under federal regulations
Dynamic Range
>=90 dB
Input Connections
High impedance, low impedance, bias
Battery (not included)
9V (NEDA type 1604) alkaline
Current Consumption
30 mA typical
Battery Life
Approximately 15 hours in High position, approximately 20 hours in Low position
Dimensions
2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D
Net Weight (without battery)
2.8 oz (78 grams)
AT-GCW
Hi-Z instrument/guitar cable with 1/4" phone plug, terminated for use with A-T UniPak™ body-pack transmitters.<
Details
<1>PRO-R1 receiver <>ATW-T27 transmitter <>AT-GCW guitar input cable <1>Professional systems deliver "wired" sound with the freedom of wireless <>Easy to set-up and easy to use <>Advanced antenna system extends operating range <>Adjustable squelch control on receiver helps eliminate interference <>Dual-power battery-save switches on transmitters <>UniPak™ transmitter features detachable microphones/guitar cable with professional locking connector <>Handheld transmitter features Hi-ENERGY® dynamic microphone element for excellent articulation <>Durable carrying case included with each system provides protection, convenience and portability
Overall System
Operating Frequency
VHF band, 169 MHz to 207 MHz
Frequency Stability
±0.005%
Modulation Mode
FM
Maximum Deviation
±15 kHz
Operating Range
200' minimum
Operating Temperature Range
40° F (4° C) to 110° F (43° C)
Frequency Response
100 Hz to 15 kHz
PRO-R1 Receiver
Receiving System
Non-diversity single-channel dual antenna system
Image Rejection
50 dB minimum
Signal-to-noise Ratio
87 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
