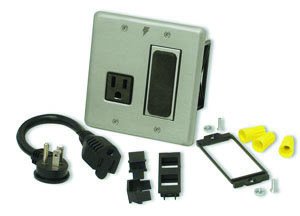

In-Wall Surge Protection System

MIW-SURGE delivers safe, protected AC power to flat panel displays, ceiling mounted video projectors and powered sub-woofers. Discreetly hides behind electronic equipment for a neat, clean, code compliant and professional installation.

Features

• AC Circuit • AC Outlets Total 1 • Line Voltage 120V, 50/60Hz • Total Current Capacity 15A • UL 1449 2nd Ed. Suppressed Voltage (@500A) 330V • UL 1449 3nd Ed. Voltage Protection Rating (@3000A) 400V • UL 1449 3nd Ed. Nominal Discharge Current 5,000A • Protection Modes L-N, L-G, N-G • Energy Dissipation 1350 Joules • Peak Impulse Current 60,000 Amps • Catastrophic Surge Circuit Yes • Thermal Fusing Yes •  • Flat Plug AC Power Cord • Length 11 inches • Connectors NEMA 5-15P and NEMA 5-15R • Design and specifications subject to change without notice due to product improvement

•  • Shipping Dimensions, Weights & UPC Codes • Single Pack • Dimensions: 5" W x 3.375" D x 5.5" H • Weight: 2 lbs. • UPC: 0 50616 00847 1 • Inner Pack • Dimensions: 15.5" W x 5.5" D x 6" H • Quantity: 6 • Weight: 13 lbs. • UPC: 3 00 50616 00847 2 • Master Pack • Dimensions: 16" W x 11.5" D x 12" H • Quantity: 24 • Weight: 52 lbs. • UPC: 5 00 50616 00847 6

Details

Features Provides surge protection Ultra-thin profile can allow equipment to hang less than one inch from the wall Compatible with most standard electrical boxes. Accommodates optional installation solutions by using: Decora® Adapter, Pass-Through Insert, Keystone 2-port adapter, MIW Signal Line Modules (MIW modules sold separately) CSA Certified for code compliant installations. 3 Year Product Warranty
