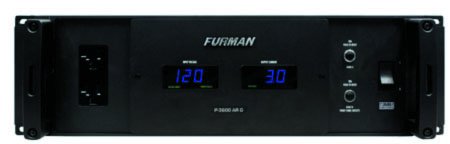

Prestige Global Voltage Regulator / Power Conditioner (30A)

The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V. The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when travelling to countries with 100V, 220V, 230V, or 240V services.

Features

• Max Current: 30 amps • Voltage Regulation: 120 VAC (±4%) • In Regulation Range: (Low) 88-133 VAC @ 50/60Hz • (High) 170-265 VAC @ 50/60Hz • Spike Protection Modes: Line to neutral, zero ground leakage • Spike Clamping Voltage 191V Peak @ 3,000 Amps • Response time: 1 nanosecond • Maximum surge current: 6,500 amps

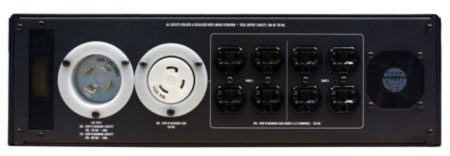

• Noise Attenuation: 10 DB @ 10KHz, 40 DB @ 100 KHz, 55 DB @ 500 KHz • Receptacles (Front panel): Two 120V 20A Edison Spec Grade NEMA-20 outlets • Receptacles (Rear panel): One 120V L-5 30A female, Eight 120V 20A Edison Spec Grade NEMA-20 outlets • Line Cord: L-14 male twistlock inlet (twistlock cable-mount connector included) • Dimensions: 5.25” H x 19” W x 14.25” D. ( 133mm H x 483mm W x 305mm D) • Weight: 98 lbs. (44.5 kg) • Safety Listing: cTUVus

Details

The P-3600 AR G's predecessor, the Furman AR-PRO, has been an indispensable product for many professional users. The updated model features Furman's True RMS Regulation Technology (utilizing an ultra-low-noise torroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. The unit also offers Furman's exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration. These features, along with the P-3600 AR G's 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step- down transformers.
