5. P-2400 AR

Prestige Voltage Regulator/Power Conditioner (20A)

The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With it's robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.

Features

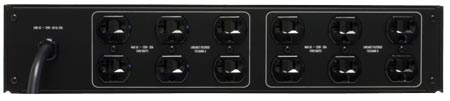

• Maximum Current: 20 amps (De-rate 170mA/V for inputs less than 120VAC • Line Cord: Captive 3/12 AWG, 10 FT, black cord with NEMA 20 plug • receptacles: Two front panel 20A NEMA5-20R outlets • Twelve rear panel 20A NEMA5-20R outlets • Operating Voltage: 90 to 139 VAC • Over-Voltage Shutdown: 145 VAC Nominal • In Regulation Range: 97 to 137 VAC • Spike Protection Mode: Line to neutral, zero ground leakage

• Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps • Response Time: 1 nanosecond • Maximum Surge Current: 6,500 Amps • Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz • Dimensions: 19” W x 12” D x 3..5” H(483mm W x 305mm D x 89mm H) • Weight: 39 lbs. (18 kg.) • Power Consumption: 13 watts

Details

Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protecti on available.
