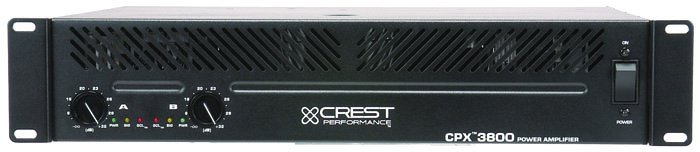

CPX3800 2 Channel Power Amplifier with GCL™ (1300W per Ch. @ 4 Ohms)

Gain Comparator Limiting. When a signal has waveform peaks that exceed the amp's power-supply rails, waveforms get chopped off, or "clipped". This undesireable distortion most often happens when the amp is turned up too high (too much gain). GCL senses clipping (or current limiting) and dynamically reduces the gain for a few milliseconds. You can drive the CPX amp to its maximum (and beyond) without hearing audible distortion.

Features

• Crest Audio's patented GCL™ Gain Comparator Limiting System for maximum output without audible distortion • Two-speed demand-sensitive fan and Turbo Cooling heat dissipator design • Detented gain controls • Power, GCL and Signal Present LEDs on each channel • Built-in 150Hz/18dB/octave Subwoofer Crossover with 1/4" TRS output

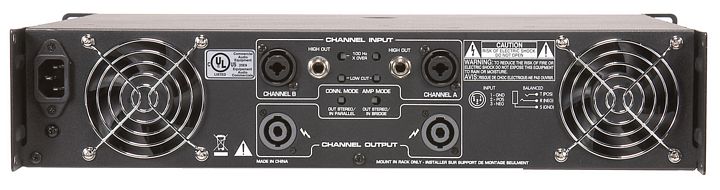

• Current in-rush limiter • Over-heat, short circuit, clip limiting, faulty load and DC circuits protect your valuable sound reinforcement speakers and the CPX amplifier • Barrier strip, balanced XLR and 1/4" TRS inputs with signal pass-through • Neutrik® Speakon® and 5-way binding post outputs • Separate bridged outputs featuring Neutrik® Speakon® connector and resessed mode switch

Details

Rear-panel GCL defeat switch Rear rack supports 14-gauge steel chassis Mil-spec fiberglass circuit boards Massive toroid transformer and storage capa 8-Ohm Bridged -2650 w/channel 4-Ohm Stereo -1300 w/channel 8-Ohm Stereo -775 w/channel
