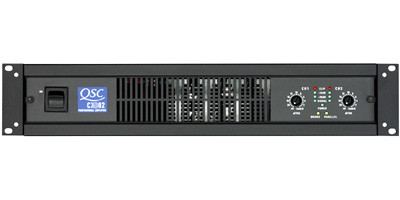

CX 2-Channel Series Power Amplifier, 550W/ch @ 8 ohms

Roll over or click to zoom in

QSC

See more from QSC

Model: CX602V

 Out of Stock

Price $1,772.00
QSC Audio CX602V Power Amp- Designed to meet the specialized needs of sound contractors with high output power, versatile loading options, high thermal capacity and reliability-the ideal solution to any permanently installed sound system.

The CX602V is designed to meet the specialized needs of sound contractors with high output power, versatile loading options, high thermal capacity and reliability, the CX602V is the ideal solution to any permanently installed sound system. This 70 volt direct model has been designed from the ground up, combining QSC's exclusive PowerLight¢ç technology with specific features to meet the requirements of fixed installations.

Features

• Exclusive PowerLight switch-mode power supply technology for high performance and compact size.
•  Custom integrated security cover for tamper proof installations.
•  Variable speed fan for low noise.
•  1 dB detented gain controls for fast and accurate gain settings.
•  Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers.
•  XLR and detachable Euro style input connectors.
•  HD15 DataPort connector for QSControl computer control or signal processing accessories.
•  Dip switch control for clip limiters, high pass filters, bridge mono and parallel operation.
•  Selectable high pass filters protect speakers and prevent speaker transformer saturation withminimal effect on program material (33 Hz or 75 Hz on non-V models, 50 Hz or 75 Hz on V models).
 •  Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge mono and parallel input LEDs.
•  Barrier strip output connector.
•  Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection.
•  Class H complementary bipolar output circuitry for high efficiency (CX702, CX902, CX1102 & CX1202V).
•  Optional external transformer accessory pack for isolated 70 and 100 -volt outputs (converts CX302 to 400 watts per channel isolated output).
•  Compact size - all models only 2 RU and 14" deep for reduced rack cost and floor space.
•  3-year warranty plus optional 3-year extended service contract.
•  Light weight - all models only 21 pounds (9.5 kg) for easier racking and shipping.

Details
