CM2208 8 Channel Power Amplifier, 220 Watts @ 8 ohms/70V

Crest Audio proudly introduces the new CM Series industrial power amplifiers, ideal for multi-channel applications in nightclubs, restaurants, hotels, retail stores and video conferencing systems.

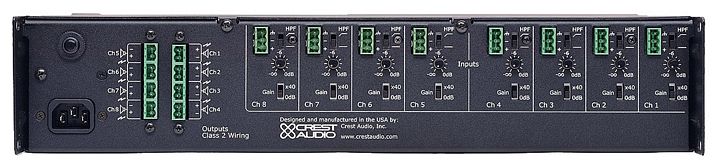

The eight-channel CM 2208 features an advanced amplification architecture that allows low impedance or 70 Volt operation at the same power levels without the switching. Each amplifier in the chassis will operate to rated power, regardless of impedance connected, from 4 ohms to 70 Volt line systems. The design centers around an ultra-high efficiency output circuit, lowering the line current required for a given output power by as much as 50%. All inputs and outputs are on Phoenix connectors with level controls in the rear.

CM Series power amps include multiple protection circuits, such as ACL Active Clip Limiting, which automatically reduces gain at the onset of clipping to prevent amplifier and load damage; IGM Instantaneous Gain Modulation, which monitors load current to protect against overloading; AUTORAMP to prevent abrupt turn-on levels by gradually increasing gain when the amplifier is switched on; as well as short circuit, DC voltage, comprehensive thermal management, current in-rush turn on/off transient and sub/ultrasonic input.

A switch allows selection of 0.775V sensitivity or x40 gain. A high pass filter is selectable per channel, and 100 Volt and 50 Volt operation is supported with our CM100V and CM50V accessories.

Features

• Power into 4 Ohm - 150 W x 8 • Power into 8 Ohm - 220 W x 8 • Power @ 70V - 220 W x 8 • Multi-load architecture allows low impedance or 70 Volt operation without select switch (100 or 50 Volt output operation with CMx accessory) • Low mains current draw • Compact design allows up to 8 channels in a 2U rack space • Low weight • Cost-effective for many multi-channel applications • Flexible configuration

• Easy set-up • CM Series Protection Circuits • ACL™ (Active Clip Limiting) automatically reduces gain at the onset of clipping to prevent amplifier and load damage • IGM™ (Instantaneous Gain Modulation) monitors load current to protect against overloading • AUTORAMP™ gradually increases gain when the amplifier is turned on, preventing abrupt turn-on level • Other protection features include: short circuit, DC voltage, comprehensive thermal management, current in-rush turnon/off transient and sub/ultrasonic input • Five-year warranty • Dimensions (W x H x D): 19" x 3.5" x 16.69" (483 x 89 x 424 mm) • Weight: 36.5 lbs. (17 kg)
