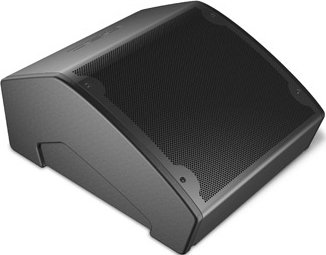

Concert Stage Two-Way 10" Stage Monitor

QSC's CSM-10 stage monitor offers the highest output-to-size ratio of any premium brand monitor on the market to date. Combining elegant industrial design with "state of the art" driver & waveguide technology, these low profile wedges possess the desired attributes asked for by many of today's monitor engineers.

The CSM-10 utilizes a selectable pattern control "shutter" system that enables the user to limit the amount of sonic energy spilling over into the audience, while increasing its upstage coverage angle. By opening the shutter, the vertical coverage is converted to an asymmetrical pattern of +45° and -75° off axis, while maintaining a nominal 50° pattern in the horizontal.

In addition to the generous upstage coverage of the CSM waveguide, special integral hardware provides up to an additional 15° (in 1° increments) of angle to the enclosure to gain a more extreme upstage coverage.

The CSM-10 utilizes a unique recessed connector pocket mounted on the bottom side of the enclosure, that with the use of its four corner rubber feet, enables the user to dress the cables in any direction needed while fully protecting the cable end connectors from damage or sight issues.

Features

• 2-way low-profile stage monitors • High output and high power handling capacity • 3" voice coil woofer • 3" diaphragm, 1.4" exit neodymium compression driver • Intrinsic Correction™ digital tunings viaQSControl.net™ • Active or passive operation (bi-amp or mono full-range)

• Selectable coverage pattern: 150° H by 50° V inmulti-purpose mode or 50° H by 100° V (+45°, -75°) in wedge mode • Integral angle adjustment hardware • Multi-purpose capability via optional yoke/pole mounthardware • Protected and hidden connector panel on bottom of wedge • Heavy-duty grille, that can withstand up to 250 lbs. of weight
