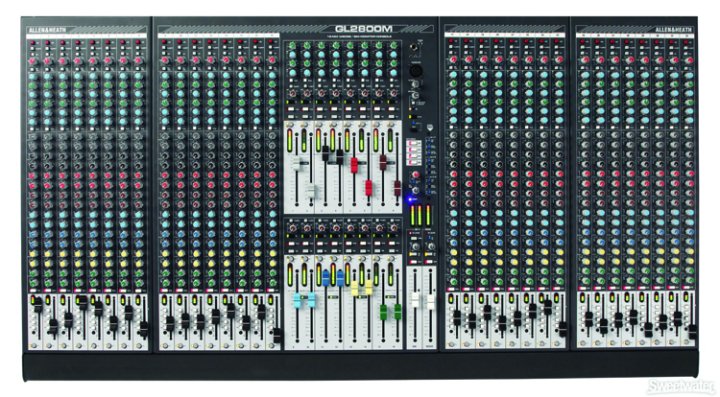

GL2800-832 8-bus 32 Input Channel Live Console

We have taken our pioneering dual functionality a
leap further with new capability for multi-output and
personal monitor mixing. 10 Auxes, including a
dedicated stereo aux for creating stereo recording or
monitor feeds. As a monitor console, you get up to
14 mixes such as 8 wedges and 3 stereo IEM,
complete with dedicated engineer’s monitor control
using the M fader. With up to 48 input channels you
can handle any festival or gig at FOH or on stage
with no controls redundant in any mode. Aux 9-10
has dedicated level and pan control complete with
mute and stereo monitoring. You can create an LCR
mix from the LR and M buses, and add 6 stereo line
sources using the full feature stereo channels and 2
extra short fader dual stereo returns in the master
section. Our new 74dB range mic preamp can
handle the widest range of signals you are ever
likely to encounter. Responsive 4 band EQ, 100Hz
channel high pass filters, Individual phantom power
and polarity switching. 8 Audio groups. A 12x4
Matrix provides a quick way to create studio quality
IEM mixes with ambience and ‘more me’ control.
You even get matrix talkback and mono or stereo
monitoring. Electronically balanced XLR outputs with
+26dBu drive capability. Built-in combiner for
redundant backup PSU. Metal jacks, gold-plated
XLRs, sealed pots and switches. Individual circuit
card assembly with nutted pots. Solid copper bus bar
grounding. Sys-Link V2 console linking option. Built-
in oscillator / pink noise generator with patchable
output, extensive metering and much more...

Features

• We have taken our pioneering dual functionality a • leap further with new capability for multi-output and • personal monitor mixing. 10 Auxes, including a • dedicated stereo aux for creating stereo recording or • monitor feeds. As a monitor console, you get up to • 14 mixes such as 8 wedges and 3 stereo IEM, • complete with dedicated engineer’s monitor control • using the M fader. With up to 48 input channels you • can handle any festival or gig at FOH or on stage • with no controls redundant in any mode. Aux 9-10 • has dedicated level and pan control complete with • mute and stereo monitoring. You can create an LCR • mix from the LR and M buses, and add 6 stereo line • sources using the full feature stereo channels and 2 • extra short fader dual stereo returns in the master • section. Our new 74dB range mic preamp can

• handle the widest range of signals you are ever • likely to encounter. Responsive 4 band EQ, 100Hz • channel high pass filters, Individual phantom power • and polarity switching. 8 Audio groups. A 12x4 • Matrix provides a quick way to create studio quality • IEM mixes with ambience and ‘more me’ control. • You even get matrix talkback and mono or stereo • monitoring. Electronically balanced XLR outputs with • +26dBu drive capability. Built-in combiner for • redundant backup PSU. Metal jacks, gold-plated • XLRs, sealed pots and switches. Individual circuit • card assembly with nutted pots. Solid copper bus bar • grounding. Sys-Link V2 console linking option. Built- • in oscillator / pink noise generator with patchable • output, extensive metering and much more...

Details

GL2800 is a compact, dual function, LR, M, 8 group, 10 aux, 12x4 matrix console. Frame sizes range from 24 to 48 channels including 2 stereo channels.​
