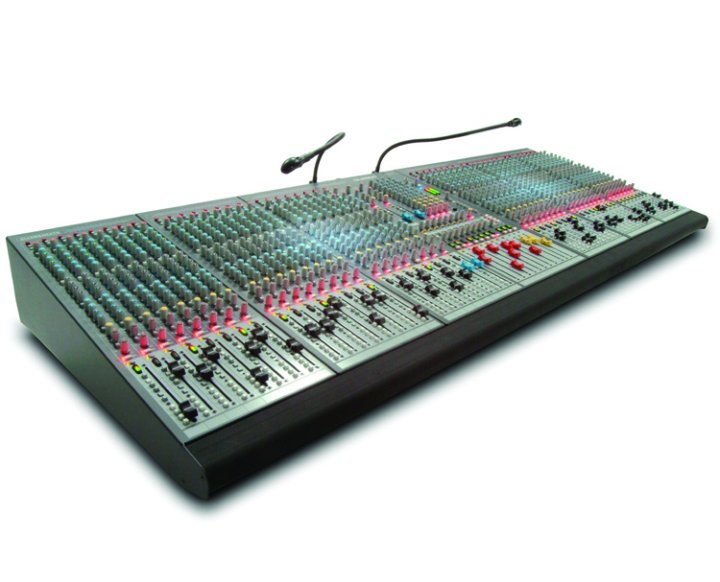

GL2800-824 8-bus 24 Input Channel Live Console

We have taken our pioneering dual functionality a
leap further with new capability for multi-output and
personal monitor mixing. 10 Auxes, including a
dedicated stereo aux for creating stereo recording or
monitor feeds. As a monitor console, you get up to
14 mixes such as 8 wedges and 3 stereo IEM,
complete with dedicated engineer’s monitor control
using the M fader. With up to 48 input channels you
can handle any festival or gig at FOH or on stage
with no controls redundant in any mode. Aux 9-10
has dedicated level and pan control complete with
mute and stereo monitoring. You can create an LCR
mix from the LR and M buses, and add 6 stereo line
sources using the full feature stereo channels and 2
extra short fader dual stereo returns in the master
section. Our new 74dB range mic preamp can
handle the widest range of signals you are ever
likely to encounter. Responsive 4 band EQ, 100Hz
channel high pass filters, Individual phantom power
and polarity switching. 8 Audio groups. A 12x4
Matrix provides a quick way to create studio quality
IEM mixes with ambience and ‘more me’ control.
You even get matrix talkback and mono or stereo
monitoring. Electronically balanced XLR outputs with
+26dBu drive capability. Built-in combiner for
redundant backup PSU. Metal jacks, gold-plated
XLRs, sealed pots and switches. Individual circuit
card assembly with nutted pots. Solid copper bus bar
grounding. Sys-Link V2 console linking option. Built-
in oscillator / pink noise generator with patchable
output, extensive metering and much more...

Features

• • 24, 32, 40 and 48 channel frames • • LR and M main mixes • • 8 Audio groups with pan and routing to LR and M • • 10 Auxes including a dedicated stereo send • • 2 multifunction stereo channels each with mic and stereo line inputs • • 2 extra dual stereos provide 4 summed or independent stereo returns • • Fully featured 12x4 Matrix • • Proper dual functionality for FoH/Monitor mixing • • Recording capable with channel direct outputs • • M can be used for centre/sub mix, LR mono sum, or engineers wedge • • Matrix external inputs with level trims and common input capability • • Stereo channel mic inputs can cross patch into matrix for ambience feed • • Responsive 4 band, 2 sweep EQ • • 100Hz channel high pass filters • • Individual phantom power and polarity switching • • Wide angle channel and master meters • • Dedicated stereo monitor meters

• • Per channel pre/post fader aux switching for full flexibility • • Recessed pre/post-EQ aux switching per channel • • Internal jumper plugs for aux, direct out and other options • • Mutes on all fader masters • • 100mm dust protected faders • • Assignable talkback to all outputs, includes a talk switch latch mode • • 1kHz oscillator / pink noise generator with patchable external output • • 2-track monitoring and replay to LR • • 3 headphones/earpiece sockets and local monitor outputs • • Electronically balanced XLR outputs with +26dBu drive capability • • Preamp 74dB range with +34dBu input capability for mic or line • • Ultra low noise mix head amp design • • Uses RPS11 high performance external linear power supply • • Built-in combiner for redundant backup supply • • Individual circuit card assembly with nutted pots • • Sys-Link V2 console input/output linking option • • 4-pin XLR lamp sockets – Allen & Heath LEDlamp available

Details

GL2800 is a compact, dual function, LR, M, 8 group, 10 aux, 12x4 matrix console. Frame sizes range from 24 to 48 channels including 2 stereo channels.​
