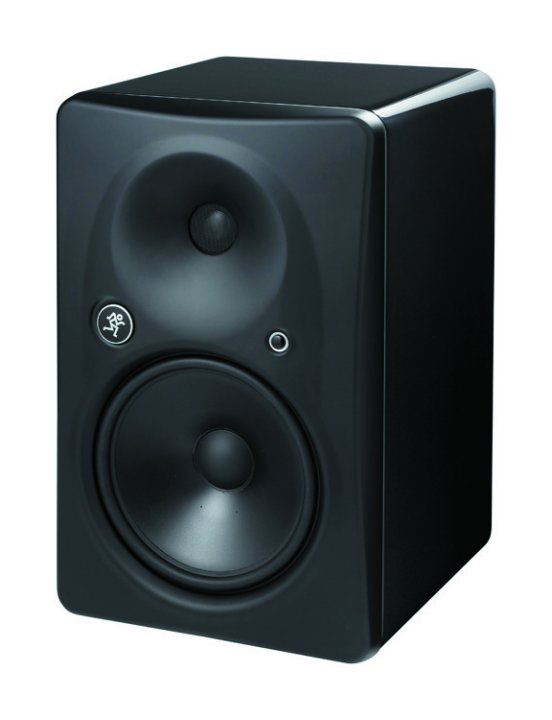

8" 2-Way High Resolution Studio Monitor

Our HR824mk2 and HR624mk2 high-resolution Active studio reference monitors represent the evolution of revolutionary thinking. Our engineers, joined by audio gurus from EAW, worked hard to conceive of a way to preserve the all-important character of the original HR, while delivering performance—as well as appearance—that’s better than ever. And even moreso than the original HR824 and HR624, which were designed apart from each other, the HR824mk2 and HR624mk2 are part of the same family, true siblings in design and sound. Sharing the same engineering, they are created to work together, whether in surround systems, or as part of complementary monitoring setups in different sized rooms

Features

• High resolution Active studio reference monitor • Ultra-linear frequency response for accurate mix translation • 8.75-inch high-precision, low-distortion LF transducer • 1-inch titanium dome, ferrofluid cooled tweeter • Optimized Waveguide for wide, even sweet zone • Twin FR Series amps — 150W for LF / 100W for HF • Cast aluminum Zero Edge Baffle™ minimizes diffraction

• Full internal damping eliminates midrange artifacts • Passive radiator provides tight, articulate bass extension down to 35Hz • Acoustic Space, LF roll-off, and HF controls • Balanced XLR, TRS, and unbalanced RCA inputs • OmniMount™ ready for easy wall/ceiling placement • THX pm3™ certified for surround sound applications • Perfect for High-Definition audio, cinema and gaming systems

Details

Input Type: <>Balanced Differential (XLR and 1/4" TRS) <>Unbalanced (RCA) Input Impedance: 20 k! Balanced 10 k! Unbalanced Input Protection: RFI and Level Protected Maximum Input Level: +20 dBu Low Frequency Filter: –3 dB @ 37 Hz, 2nd-order transitional high-pass filter –3 dB @ 47 Hz, 4th-order Chebyshev high-pass filter –3 dB @ 80 Hz, 4th-order Butterworth high-pass filter HF Equalization: ±2 dB @ 10 kHz, shelving Acoustic Space: A position: –4 dB @ 50 Hz, shelving B position: –2 dB @ 50 Hz, shelving C position: Flat Compressor: Independent high and low frequency overload detection Low Line Voltage Shut Down: 60% of Nominal Line Thermal Protection: Amplifier Shut-Down, Auto Reset Muting: 5 seconds at turn-on Driver Protection: Independent LF and HF De <1>High resolution Active studio reference monitor <>Ultra-linear frequency response for accurate mix translation <>8.75-inch high-precision, low-distortion LF transducer <>1-inch titanium dome, ferrofluid cooled tweeter <>Optimized Waveguide for wide, even sweet zone <>Twin FR Series amps — 150W for LF / 100W for HF <>Cast aluminum Zero Edge Baffle™ minimizes diffraction <>Full internal damping eliminates midrange artifacts <>Passive radiator provides tight, articulate bass extension down to 35Hz <>Acoustic Space, LF roll-off, and HF controls <>Balanced XLR, TRS, and unbalanced RCA inputs <>OmniMount™ ready for easy wall/ceiling placement <>THX pm3™ certified for surround sound applications <>Perfect for High-Definition audio, cinema and gaming systems Input Type: <1>Balanced Differential (XLR and 1/4" TRS)<>Unbalanced (RCA) Input Impedance: 20 k! Balanced 10 k! Unbalanced Input Protection: RFI and Level Protected Maximum Input Level: +20 dBu Low Frequency Filter: –3 dB @ 37 Hz, 2nd-order transitional high-pass filter –3 dB @ 47 Hz, 4th-order Chebyshev high-pass filter –3 dB @ 80 Hz, 4th-order Butterworth high-pass filter HF Equalization: ±2 dB @ 10 kHz, shelving Acoustic Space: A position: –4 dB @ 50 Hz, shelving B position: –2 dB @ 50 Hz, shelving C position: Flat Compressor: Independent high and low frequency overload detection Low Line Voltage Shut Down: 60% of Nominal Line Thermal Protection: Amplifier Shut-Down, Auto Reset Muting: 5 seconds at turn-on Driver Protection: Independent LF and HF Detection Overall Compression
