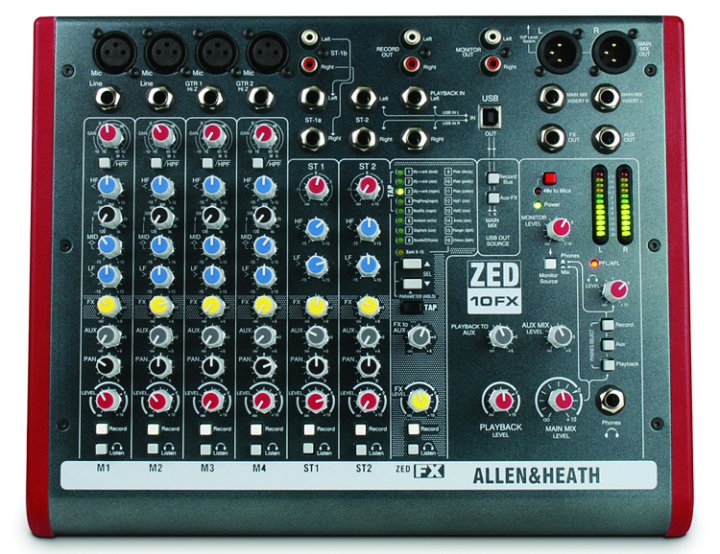

ZED 10 Channel Mini Mixer With Effects

ZED-10FX is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings.
Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. ZED-10FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX.

Features

• 4 mic/line inputs, 2 with Class A FET high impedance inputs • Neutrik mic XLR • Neutrik 1/4 inch jacks • 3 band EQ with MusiQ • 1 pre-fade Aux send • 1 FX send • Sound image pan • Illuminated PFL indicator • Stereo returns & playback • All inputs with level control • 12 bar meters

• Responsive 3-band, swept mid EQ with MusiQ • 2 stereo sources with MP3 player compatibility • Separate 2-track record outputs • Stereo playback input for 2-track replay • XLR main stereo outputs with inserts • Comprehensive monitoring • Configurable USB stereo audio in/out • Stereo monitor outs • 48V microphone phantom power • DI level switching for sub mixing

Details

ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.
