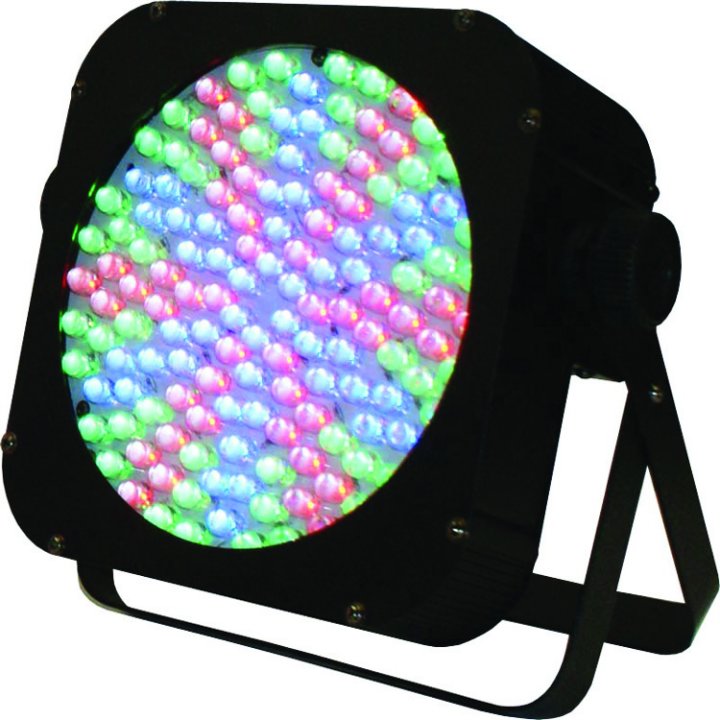

The Puck: Unplugged Battery Powered RGB LED Flat Par Can

The Puck: Unplugged builds on the versatility, reliability and ease of use of the original Puck by featuring an easy-to-use Lithium-Ion internal battery system which allows the user to the flexibility to operate their light fixture without AC power for up to 20 hours.

144 ultra-bright 10mm LEDs also make it big on output, while an LED control panel and power daisy chain connectors make it flexible and perfect for uplighting!

The Puck: Unplugged RGB features 3 and 6-channel control modes which means it works great with any type of controller, including popular 3-channel easy controllers. Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.

And, take full advantage of Blizzard's wiCICLE® wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.

Features

• High-capacity Lithium-Ion Battery system provides unplugged operation for up to 20 hours! • RGB color mixing via 144x high-power 10mm Red/Green/Blue LEDs • Variable electronic strobe • Variable electronic dimmer (0 ï¾– 100%) • User selectable 3 (Red/Green/Blue dimming) or 6 DMX channels • Built-in chase macros via DMX • Full RGB color mixing in Standalone, Master/Slave and DMX modes. • Built-in automated programs via master/slave

• Built-in sound activated programs via master/slave • Easy to use LED control panel • Running hours display • Rugged all-metal case with dual mounting yokes • IEC power in and daisy chain connections to connect additional units • Able to directly power the wiCICLEï¾® wireless system via DMX • Power and DMX connections and LED control panel are all in places which means you can truly use The Puck in ANY position, including flat on the floor! • Two-piece mounting yoke allows flexibility in positioning

Details

Weight & Dimensions Length 8.25 inches (210 mm) Width 3.75 inches (63.5 mm) Height 8.25 inches (210 mm) Weight 4.5 lbs (2.05 kg)Power Operating Voltage 90-230VAC, 50-60 Hertz Fuse 3A 250V Power Consumption 20WLight Source LED 144x 10mm Red/Green/Blue 100K hrs.Optical Beam Angle 21 degrees 32 degree field Luminous Intensity 3,920 Lux @ 1mThermal Max. Operating Temp. 104 degrees F (40 degrees C) ambientControl Protocol USITT DMX-512 DMX Channels 3 or 6 (User Selectable) Input 3-pin XLR Male Output 3-pin XLR FemaleOther Operating Modes Standalone, Master/Slave, Sound Active, Color Preset, Standalone color mixingBattery Type/Rating Field-replaceable Lithium-Ion, 11.1V 8.0Ah with built-in protection circuit.Warranty Fixture: 2-year limited warranty. Battery: 1-year limited warranty covering failure only.
