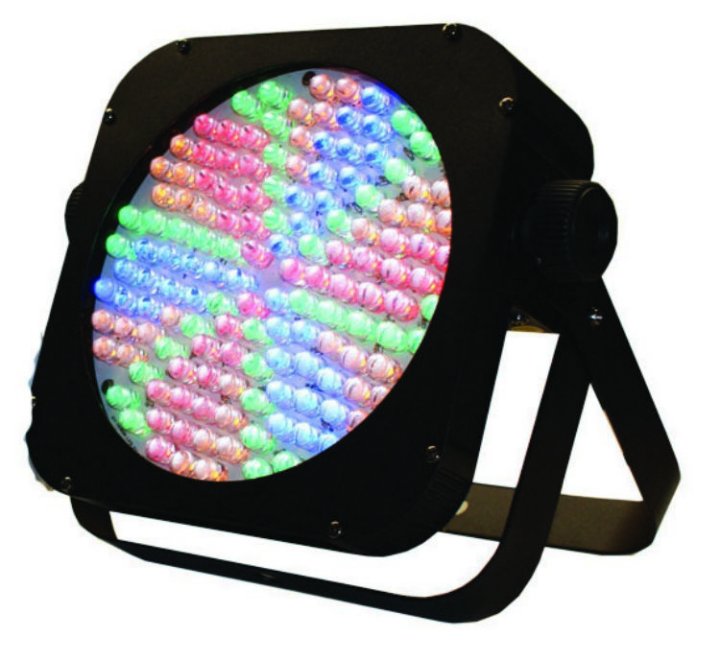

The Puck RGBAW 198x10mm LED Flat Par Can

The Puck RGBAW rounds out our line of 10mm Edison® LED equipped flat PAR cans with 198*Red/Green/Blue/Amber/White LEDs, plus more color presets, strobing in standalone, and 3 switchable DMX modes including sound active mode in DMX!

With an overall depth of 2.5" and a main depth of about 1", The Puck RGBAW is definitely one thin PAR! 198 ultra-bright 10mm LEDs also make it big on output, while an LED control panel and power daisy chain connectors make it flexible and perfect for uplighting!

The Puck RGBAW features 3, 5 and 12-channel control modes which means it works great with any type of controller, including popular easy controllers. Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.

Compare it to the competition... It is brighter, more affordable and of course... it says Blizzard Lighting on it, which means you get an industry-leading 2-year warranty and friendly, responsive service if you ever need it!

Features

• RGBAW Color Mixing via 198x Edisonï¾® .5-watt 10mm LED's (45 each Red/Amber, 39 each Green/Blue, 30 White) • Variable electronic strobe • Variable electronic dimmer (0 ï¾– 100%) • User selectable 3 (Dimmer/Strobe/31 Color Preset), 5 (Red/Green/Blue/Amber/White dimming) or 12 (Extended) DMX channels • Sound active in DMX mode • Built-in chase macros via DMX • Full RGBAW color mixing plus 31 built-in colors in Standalone, Master/Slave and DMX modes. • Built-in automated programs via master/slave

• Built-in sound activated programs via master/slave • Easy to use LED control panel • Running hours display • Rugged all-metal case with dual mounting yokes • IEC power in and daisy chain connections to connect additional units • Power and DMX connections and LED control panel are all in places which means you can truly use The Puck RGBAW in ANY position, including flat on the floor! • Two-piece mounting yoke allows flexibility in positioning

Details

Beam Angle: 21ï¾°, Field Angle: 32ï¾° Lux: 4,075 @ 1m Light source: 198 x 10mm .5W LEDs, 100,000 hrs Power and current: 120 V, 60 Hz; 20 W, 0.17 A (operating), 0.17 A (inrush) 230 V, 50 Hz; 10 W, 0.1 A (operating), 0.1 A (inrush) AC power: Auto-ranging 100 V ~ 240 V 50/60 Hz Weight: 4 lbs / 1.8 kg Size: 8.25 x 8.25 x 2.5 in / 210 x 210 x 63.5 mm
