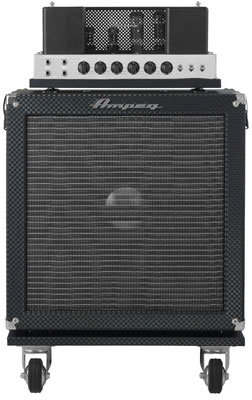

Heritage Series 30 Watt Tube Bass Combo Amplifier

The Heritage B15 features the circuit paths of both a 1964 and 1966 B15, including classic Baxandall EQ controls and premium 6SL7 octal preamp tubes along with a bias switch, recreating each years' distinctive bias methodology.
The extremely high-quality flip-top cabinet features the legendary double-baffle design and houses a highly-researched, custom-designed 15 inch Eminence driver. The Heritage B15 is no mere tribute; it meets and exceeds the performance, look and tone of the legendary original, down to each and every component.

Features

• Hand-built and hand-wired in the U.S.A. • Limited edition production • Only 50 units available • Numbered and matched heads/cabs • Classic Ampeg flip-top design • Chrome-plated chassis • Rugged cabinets made with Baltic birch and poplar • Legendary double-baffle cabinet design delivers classic tone • Two distinct, hand-wired preamp circuits • Channel 1 - 1964 (B-15NC) • Channel 2 - 1966 (B-15NF) • Selectable bias modes for ultimate tone control • 1964 - cathode bias (25W @ 4 or 8 ohms)

• 1966 - fixed bias (30W @ 4 or 8 ohms) • High-grade new and N.O.S. tubes • Preamp - 3 x 6SL7 (N.O.S. JAN Philips ECG 6188) • Rectifier - 1 x 5AR4 or 5U4G • Power amp - 2 x 6L6GC • Legendary Baxandall bass/treble tone stack on both channels • Dual inputs per channel (0dB & -15dB) • Custom-designed 15 inch U.S.-made Eminence driver • 4 inch voice coil • 109 oz ceramic magnet • Aluminum dust cover • External amplifier out

Details

RMS Power Output: 30W RMS (1966 bias) / 25W RMS (1964 bias) LF Driver: 1 x 15˝ custom Eminence® Preamp: Tube (3 x 6SL7) Rectifier: Tube (1 x 5AR4 or 5U4G) Power Amp: Tube (2 x 6L6GC) Channel 1: 1964 (B-15NC) Channel 2: 1966 (B-15NF) Tone Controls: Baxandall Bass and Treble (per channel) Power Tube Bias: Selectable (1964/cathode, 1966/fixed) Speaker Outputs: 1 x 8 ohm, 2 x 4 ohm Line Out: Yes Dimensions (H x W x D inches): 27 x 21 x 14 w/dolly Handling Weight: 99 lbs / 44.9 kg
